Product Highlights
| Wide range of thermal management applications | Low surface tension | Low kinematic viscosity |
| Insulation | Wide material compatibility | Low toxicity |
| Low Global Warming Potential (GWP) | Zero Ozone Depletion Potential (ODP) | No burning |
| Not a volatile organic compound | Comply with RoHS environmental directive | Comply with REACH environmental directive |
Product Features
Stable chemical inertness: does not corrode or react with materials; does not turn yellow or form decomposition products after long-term use, and has good compatibility with materials.
Insulation: excellent dielectric constant, high insulation.
Low surface tension and low kinematic viscosity: good wettability, strong solubility, improved heat conduction efficiency, improved permeability, reduced adhesion to solid surfaces, improved coating and spraying performance, and improved cleaning efficiency.
No residue: dries quickly after use, no residue, no whitening.
Good thermal conductivity: excellent temperature control performance.
Cost saving: high boiling point advantage, low evaporation loss.
Safety and environmental protection: no ignition point, flash point, no risk of explosion and combustion; non-toxic and odorless, no ingredients of this product are listed as carcinogens by OSHA IARC NTP, and the allowable concentration is high (TWA).
Multiple models: wide boiling point range, multiple choices, to meet multiple needs.
Industry Applications
 |  |  |  |  |
| Electric vehicle power battery liquid cooling | Data Center Immersion Liquid Cooling | Silicon wafer ultrasonic cleaning | Silicon wafer cleaning | PCB cleaning |
 |  |  |  |  |
| Precision equipment cleaning | Solvents | Dehydration cleaning | Cooling and lubrication for CNC | Optical cleaning |
- Heat conduction and cooling media, heat dissipation media for computer servers, electronic components, power batteries, energy storage, etc.
- Semiconductor, chip manufacturing, packaging testing, laser etching.
- Cleaning and maintenance of electronic, electrical and power equipment without power outages or stopping work.
- Provide insulation protection inside high-voltage equipment.
- Cooling and lubrication during milling and grinding.
- Precision cleaning, dehydration, leak detection, and testing of electronic components.
- Solvent diluents, lubricant diluents and other solvents for other purposes.
- Thermal shock test fluid.
Physical And Chemical Parameters
KEY-117S
| Appearance Status | Transparent liquid | Thermal Conductivity | 0.065 W/m·K | |
| Odor | Odorless | Dielectric Strength | ＞35KV | |
| Content | ＞99% | Dielectric Constant | - | |
| Boiling Point | 98℃ | Water Content | ＜50 ppm | |
| Pour Point | ＜-40℃ | pH | - | |
| Kinematic Viscosity | 0.60 cst | Flash Point | None | |
| Density | 1.66 g/ml | ODP | 0 | |
| Refractive Index | 1.28 | KB Value | - | |
| Expansion Coefficient | 0.0011 cm³ /cm³ ℃ | GWP | Low | |
| Surface Tension | 14 dyn/cm |
Remark:
- The properties of the product at 25°C, excluding boiling point and freezing point.
- 1 torr is equivalent to 1 mm mercury column pressure. One atmosphere is about 100,000 Pa, and it is equivalent to 760 mm mercury column pressure. So 1KPa is equivalent to 7.6 torr.

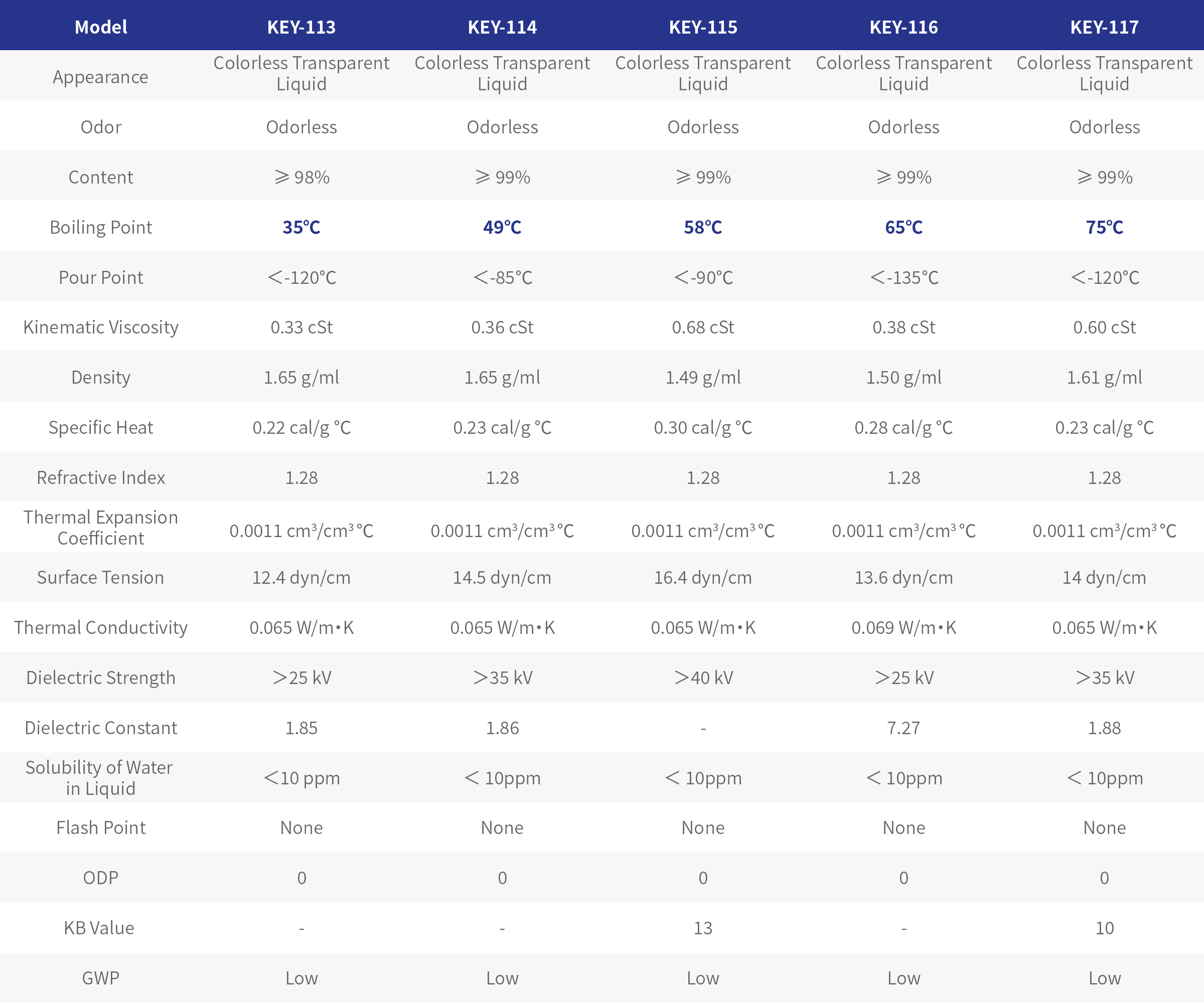

KEY Low Boiling Point Fluorinated Liquid (35℃~98℃) Detailed Parameter Comparison Table
| Product Model | KEY-113 | KEY-114 | KEY-116 | KEY-117 | KEY-117S |
| Appearance Status | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid |
| Odor | Odorless | Odorless | Odorless | Odorless | Odorless |
| Content | ＞98% | ＞99% | ＞99% | ＞99% | ＞99% |
| Boiling Point | 35℃ | 49℃ | 65℃ | 75℃ | 98℃ |
| Pour Point | ＜-90℃ | ＜-90℃ | ＜-130℃ | ＜-120℃ | ＜-40℃ |
| Kinematic Viscosity | 0.33 cst | 0.39 cst | 0.38 cst | 0.60 cst | 0.60 cst |
| Density | 1.60 g/ml | 1.66 g/ml | 1.50 g/ml | 1.62 g/ml | 1.66 g/ml |
| Refractive Index | 1.28 | 1.28 | 1.28 | 1.28 | 1.28 |
| Expansion Coefficient | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ |
| Surface Tension | 12.4 dyn/cm | 10.9 dyn/cm | 13.6 dyn/cm | 13.5 dyn/cm | 14 dyn/cm |
| Thermal Conductivity | 0.065 W/m·K | 0.065 W/m·K | 0.069 W/m·K | 0.065 W/m·K | 0.065 W/m·K |
| Dielectric Constant | ＞25KV | ＞40KV | ＞30KV | ＞30KV | ＞35KV |
| Dielectric Constant | 1.85 | 1.8 | 7.25 | - | - |
| Water Content | ＜15ppm | ＜15ppm | ＜15ppm | ＜50ppm | ＜50ppm |
| pH | - | - | - | - | - |
| Flash Point | None | None | None | None | None |
| ODP | 0 | 0 | 0 | 0 | 0 |
| GWP | Low | Low | Low | Low | Low |

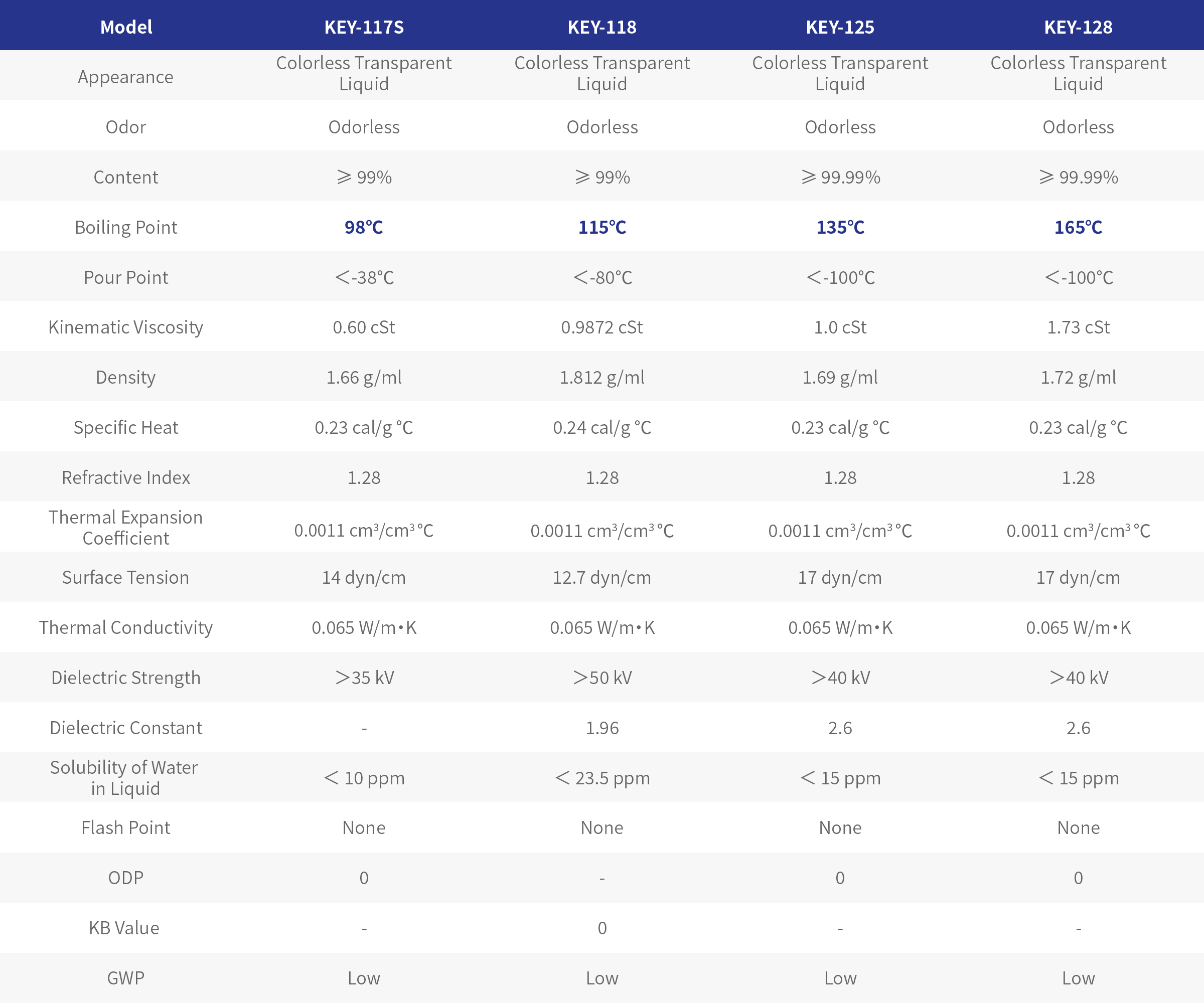

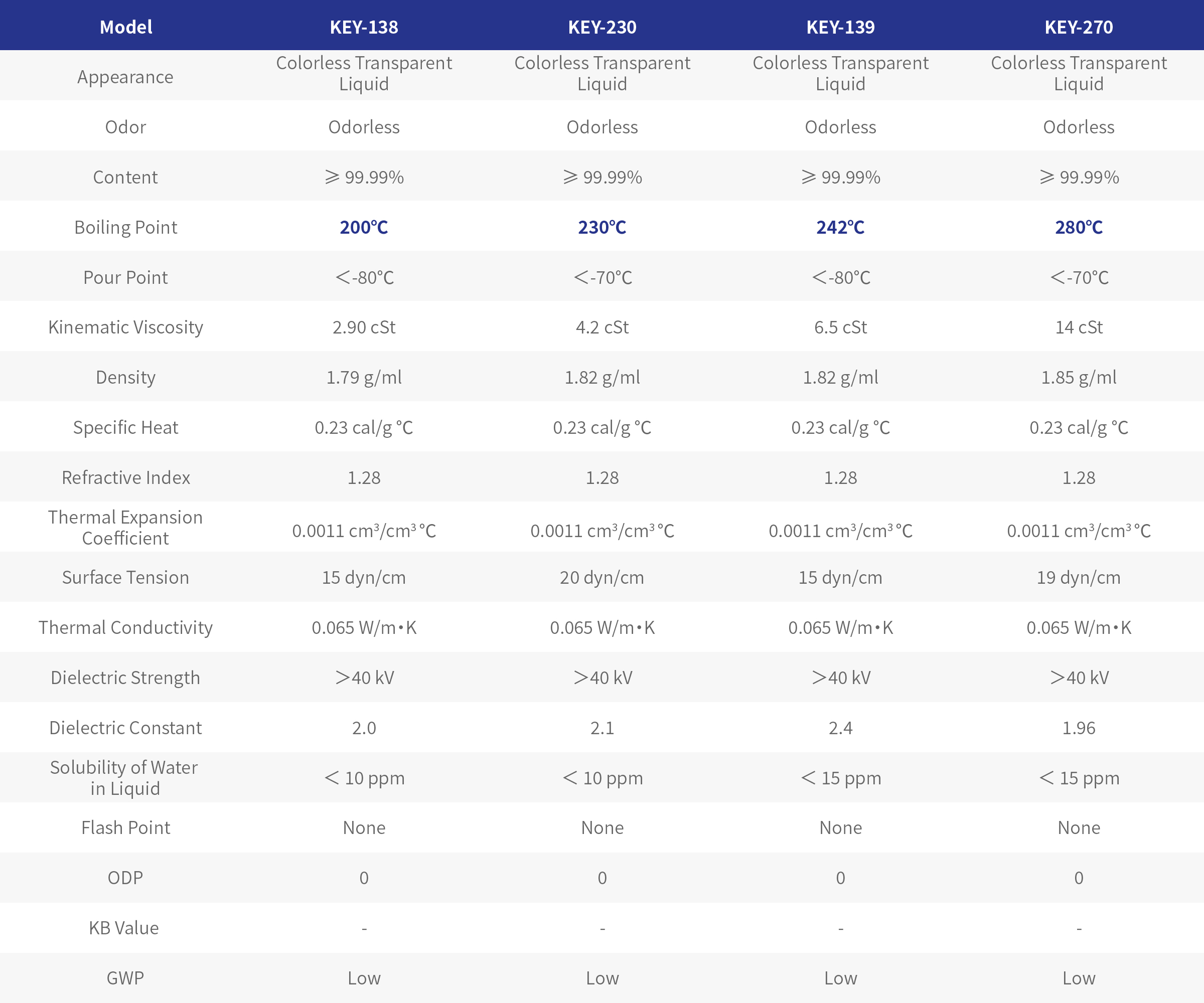

KEY High Boiling Point Fluorinated Liquid (115℃~275℃) Detailed Parameter Comparison Table
| 型号 | KEY-118 | KEY-125 | KEY-128 | KEY-138 | KEY-230 | KEY-139 | KEY-140 |
| Appearance Status | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid | Transparent liquid |
| Odor | Odorless | Odorless | Odorless | Odorless | Odorless | Odorless | Odorless |
| Content | ＞99% | ＞99.99% | ＞99.99% | ＞99.99% | ＞99.99% | ＞99.99% | ＞99.99% |
| Boiling Point | 115℃ | 135℃ | 165℃ | 200℃ | 230℃ | 242℃ | 275℃ |
| Pour Point | ＜-80℃ | ＜-90℃ | ＜-90℃ | ＜-80℃ | ＜-70℃ | ＜-77℃ | ＜-70℃ |
| Kinematic Viscosity | 0.9872 cst | 1.0 cst | 1.04 cst | 2.90 cst | 4.2 cst | 4.7 cst | 14 cst |
| Density | 1.812 g/ml | 1.71 g/ml | 1.74 g/ml | 1.79 g/ml | 1.82 g/ml | 1.82 g/ml | 1.85 g/ml |
| Refractive Index | 1.28 | 1.28 | 1.28 | 1.28 | 1.28 | 1.28 | 1.28 |
| Expansion Coefficient | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ | 0.0011 cm³ /cm³ ℃ |
| Surface Tension | 12.7 dyn/cm | 17 dyn/cm | 17 dyn/cm | 19 dyn/cm | 20 dyn/cm | 15 dyn/cm | 18 dyn/cm |
| Thermal Conductivity | 0.065 W/m·K | 0.065 W/m·K | 0.065 W/m·K | 0.065 W/m·K | 0.065 W/m·K | 0.065 W/m·K | 0.065 W/m·K |
| Dielectric Constant | ＞50KV | ＞40KV | ＞40KV | ＞40KV | ＞40KV | ＞40KV | ＞40KV |
| Dielectric Constant | 1.96 | 2.6 | 2.6 | 2.0 | 2.1 | 2.4 | 2.2 |
| Water Content | ＜23.5ppm | ＜15ppm | ＜15ppm | ＜15ppm | ＜10ppm | ＜15ppm | ＜15ppm |
| pH | 7 | - | Not applicable | Neutral | Not applicable | Not applicable | Not applicable |
| Flash Point | None | None | None | None | None | None | None |
| ODP | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| KB Value | - | - | - | - | - | - | - |
| GWP | Low | Low | Low | Low | Low | Low | Low |
Storage And Transportation Requirements And Precautions
Transport as non-hazardous chemicals and non-corrosive chemicals, and store at room temperature.
Pay attention to sealing, avoid direct sunlight and high heat.
The warranty period is 24 months in sealed state.
Do not mix with strong acids, strong alkalis, and reducing substances.
It is recommended that users do compatibility testing before application.
Packing Specifications
 |  |  |  |  |  |  |
| 5 KG | 10 KG | 15 KG | 20 KG | 25 KG | 50 KG | 100 KG |
